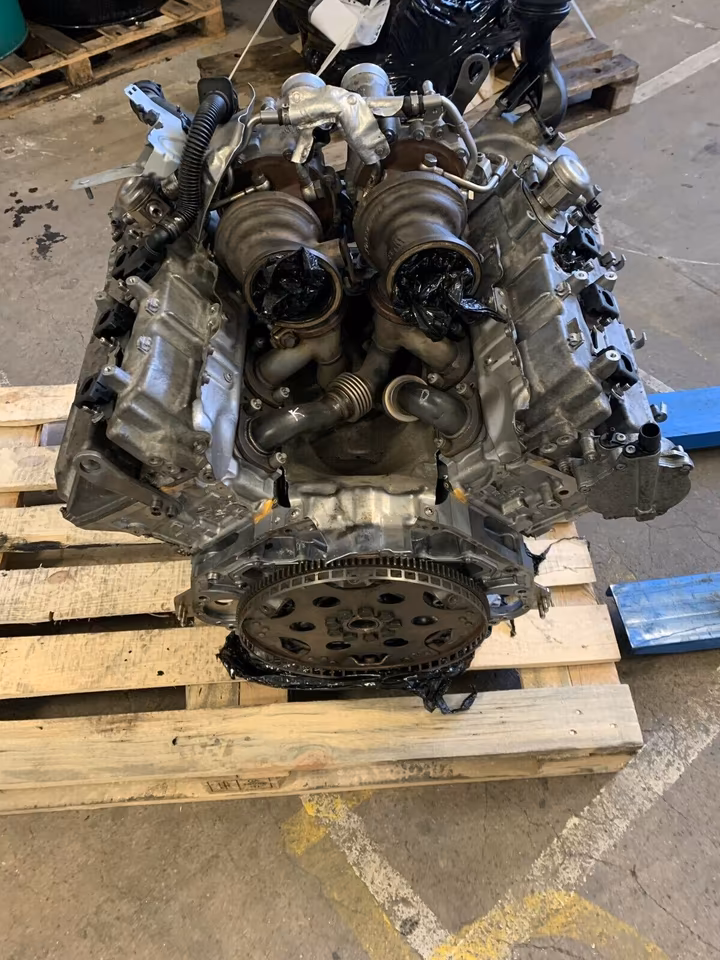

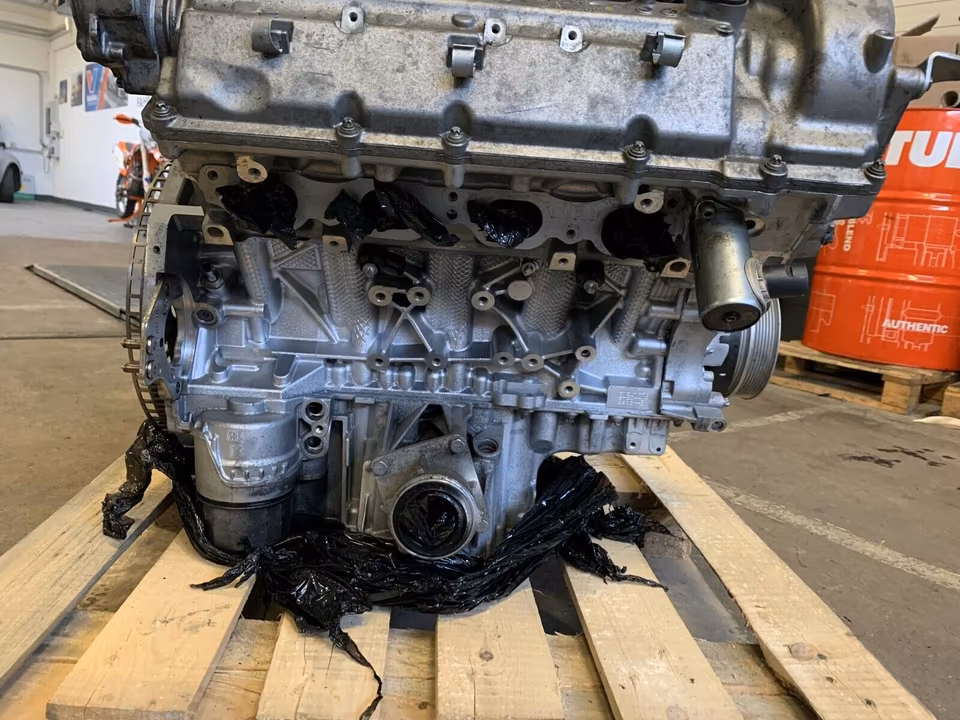

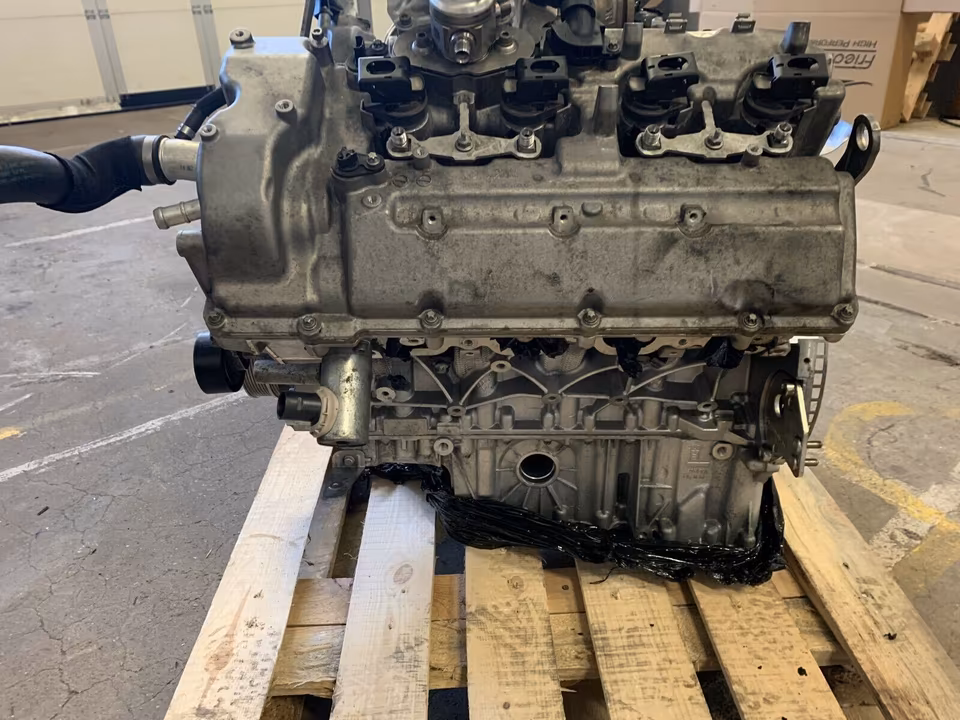

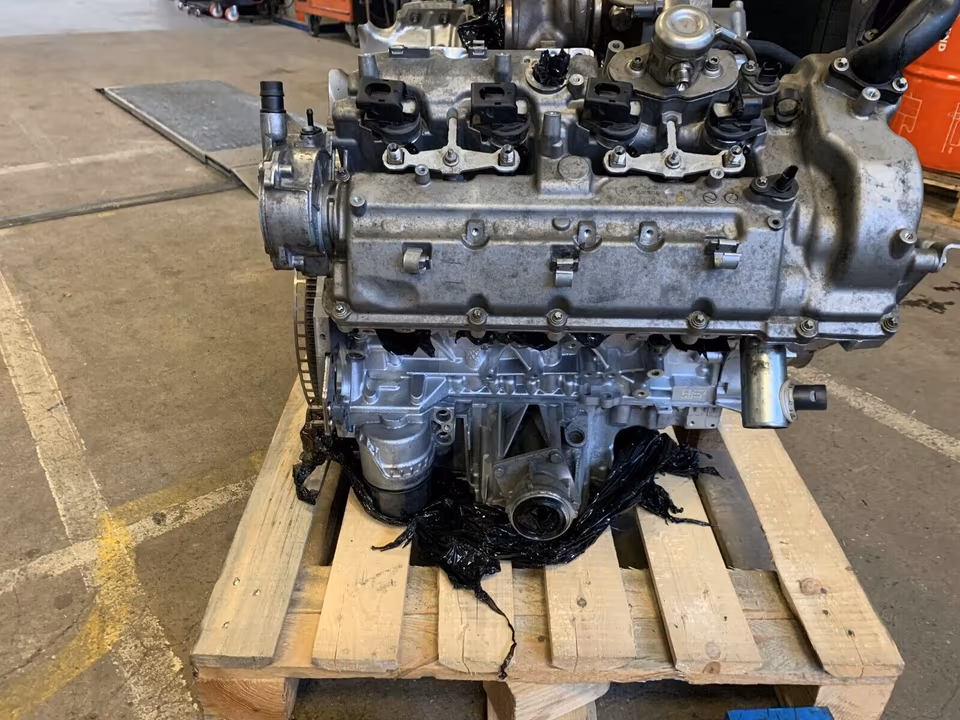

BMW X5 M / X6 M F85 F86 S63B44B 4.4 V8 Complete Engine — 575 HP

Genuine OEM BMW S63B44B 4.4L V8 TwinPower Turbo petrol engine, designed for the BMW X5 M F85 and X6 M F86.

Vehicle: BMW X5 M F85 / X6 M F86
Engine code: S63B44B
Displacement: 4,395 cc / 4.4L
Configuration: V8 twin-turbo petrol
Power: 423 kW / 575 HP
Torque: 750 Nm
Fuel: Petrol / direct injection
Drivetrain: M xDrive AWD
Transmission: 8-speed M Steptronic
Part type: Complete engine / engine assembly

BMW’s technical documentation identifies the F85/F86 engine as S63B44T2, while parts and replacement-engine catalogues commonly identify the same 575-hp application as S63B44B. BMW specifies 423 kW (575 hp) and 750 Nm for both the X5 M and X6 M.

Applications

• BMW X5 M F85 — 2015–2018
• BMW X6 M F86 — 2015–2018
• Standard 575 HP specification
• M xDrive all-wheel drive

BMW confirms the 4.4L V8 uses M TwinPower Turbo, twin-scroll turbochargers, cross-bank exhaust manifolds, VALVETRONIC and High Precision Direct Petrol Injection.

Engine Specifications

• 4,395 cc
• 8-cylinder V configuration
• Twin turbochargers
• Direct petrol injection
• 575 HP / 423 kW
• 750 Nm
• Maximum power: 6,000–6,500 rpm
• Maximum torque: 2,200–5,000 rpm
• 8-speed M Steptronic transmission

Important Compatibility

For an exact replacement, verify the VIN, engine serial number, BMW OEM part number and engine designation. The S63B44B/S63B44T2 specification for F85/F86 differs from the earlier S63 engines used in the E70/E71 X5 M/X6 M and from the S63B44T0 used in the F10 M5/F12/F13 M6.

Also confirm whether the engine is supplied with turbochargers, injectors, high-pressure fuel system, alternator, starter, wiring, intake/exhaust components and other ancillaries, as “complete engine” specifications vary by supplier.
