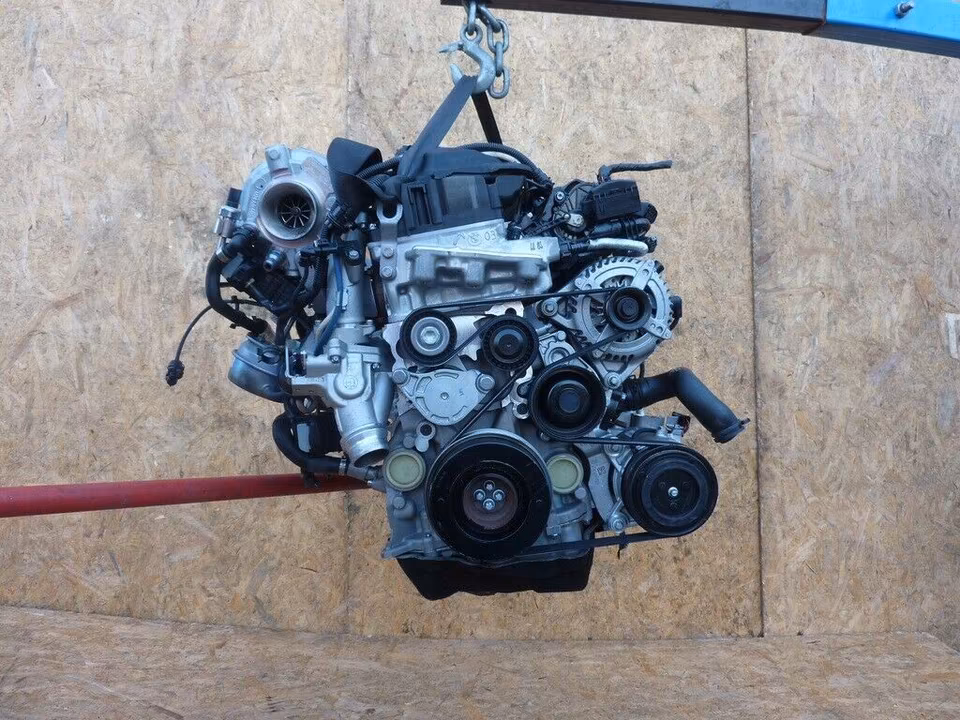

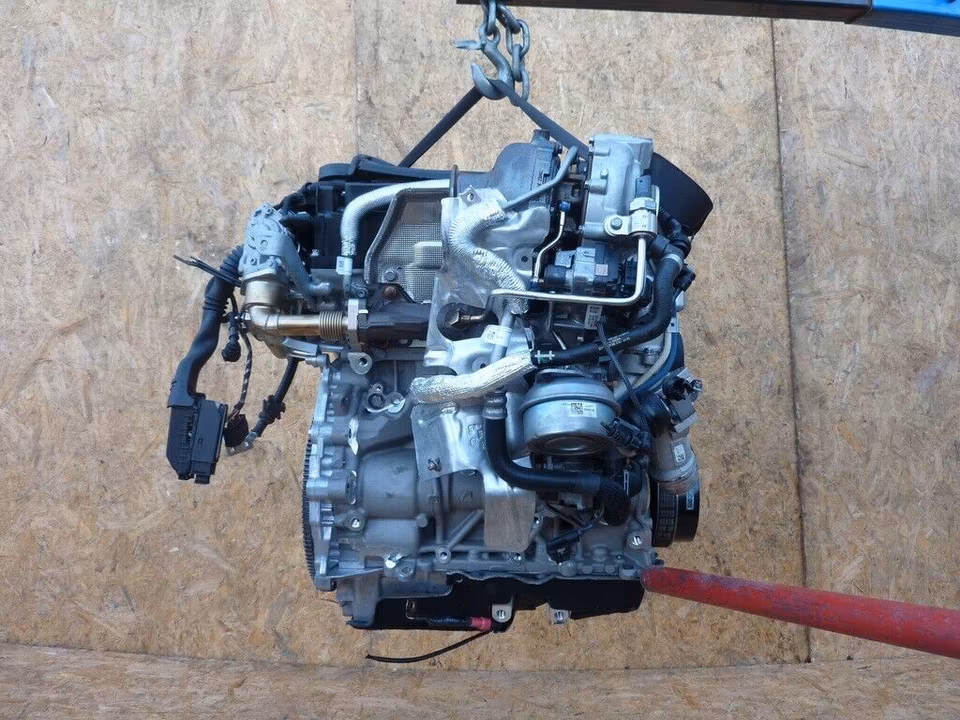

BMW X1 F48 2.0 Diesel B47C20B Engine

Genuine OEM BMW B47C20B 2.0L diesel engine, suitable for the BMW X1 F48, including 18d and 20d applications.

Vehicle: BMW X1 F48
Engine: B47C20B
Displacement: 1,995 cc / 2.0L
Configuration: 4-cylinder turbo diesel
Fuel: Diesel / common rail
Applications: X1 18d / 20d
Part type: Complete engine / engine assembly
Condition: Used / Reconditioned — specify

The B47C20B is documented in the F48 X1 18d at 110 kW (150 hp) and 20d at 140 kW (190 hp), with both sDrive and xDrive configurations available depending on specification.

Applications

• X1 sDrive18d — 150 hp / 110 kW
• X1 xDrive18d — 150 hp / 110 kW
• X1 sDrive20d — 190 hp / 140 kW
• X1 xDrive20d — 190 hp / 140 kW

BMW parts catalogues also identify B47C20B for the F48 X1 18d, including replacement engine reference 11005A2F1F9 on later production vehicles.

Important Compatibility

The B47C20B engine code covers different power outputs, so the code alone does not guarantee a direct replacement. Verify:

• VIN
• Exact engine number
• 18d vs 20d
• sDrive vs xDrive
• Production year
• ECU and wiring
• Turbocharger/injectors
• DPF/SCR/AdBlue equipment
• Transmission configuration

For example, the X1 18d is rated at 150 hp and 350 Nm, while the 20d is rated around 190 hp and 400 Nm.

Suggested listing title:
BMW X1 F48 2.0 Diesel B47C20B Complete Engine 18d 20d 150HP 190HP sDrive xDrive
