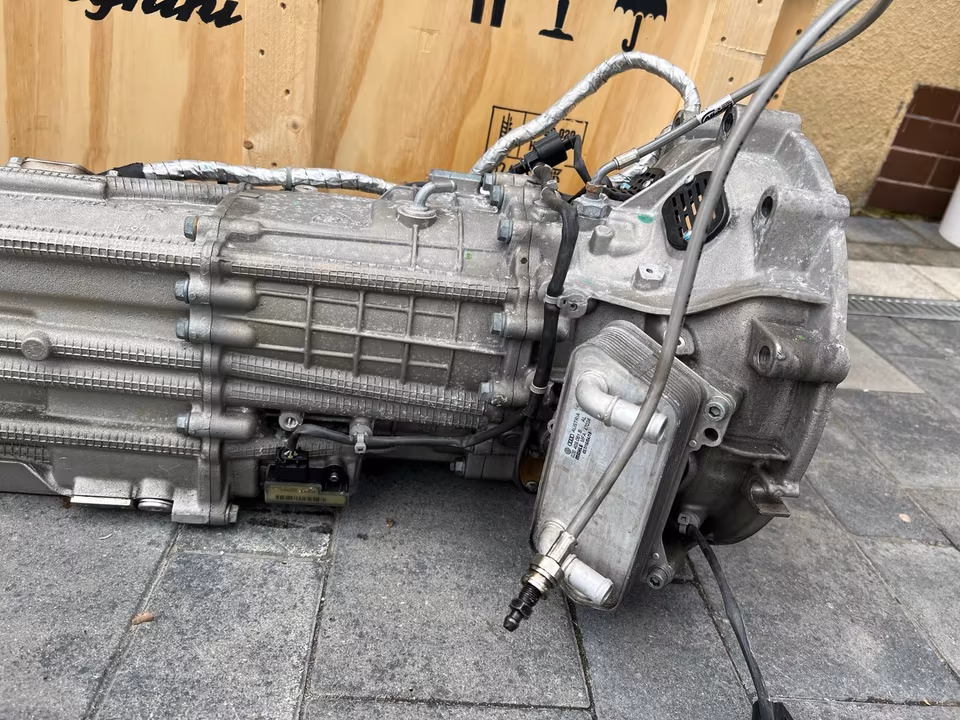

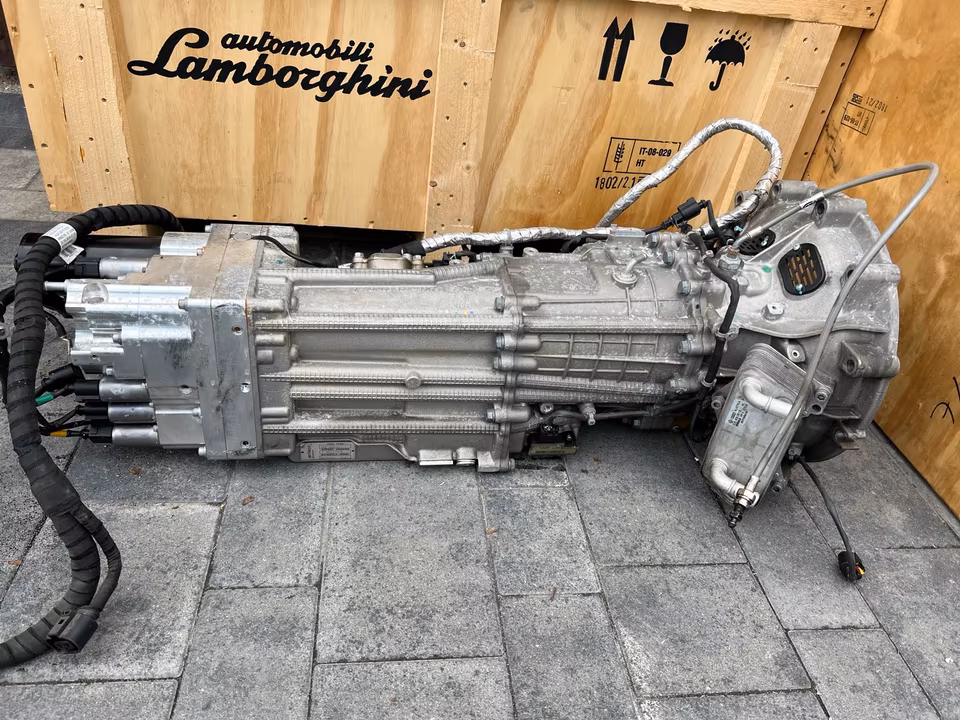

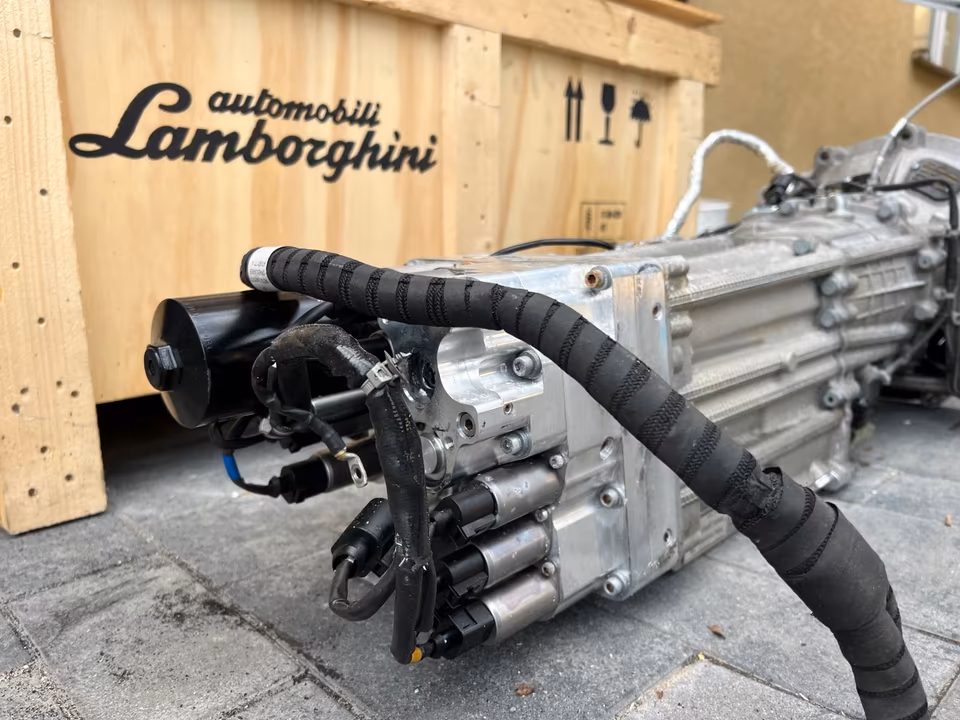

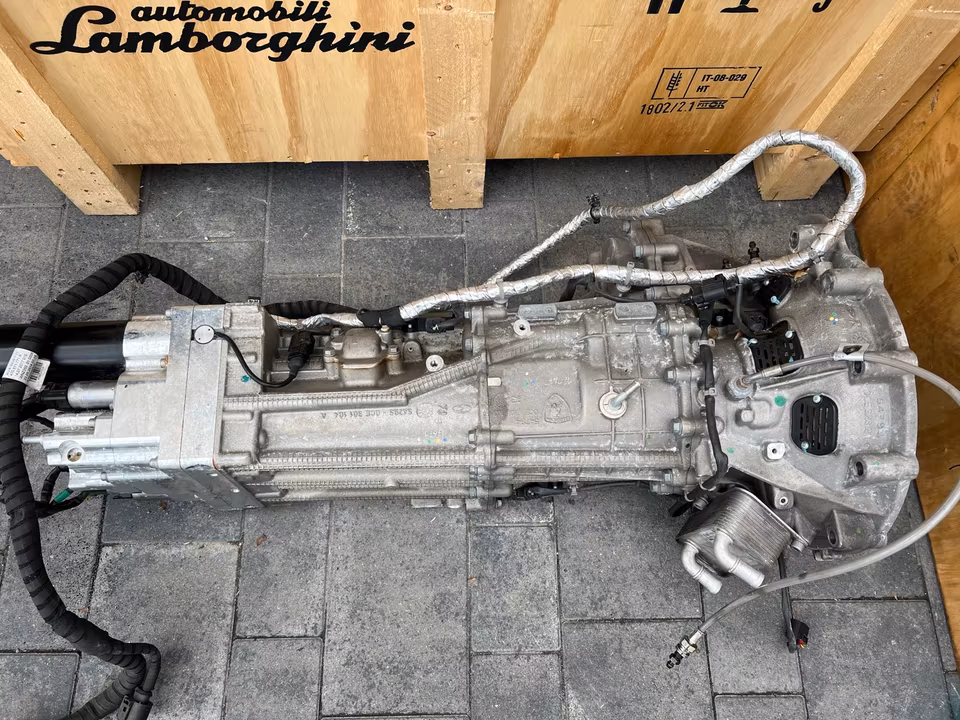

Lamborghini Aventador S LP740-4 Gearbox & Clutch

Genuine OEM Lamborghini Aventador S LP740-4 7-speed ISR automated manual gearbox and dry double-plate clutch.

Vehicle: Lamborghini Aventador S LP740-4
Engine: 6.5L V12
Transmission: 7-speed ISR automated manual
Drive: 4WD
Clutch: Dry double-plate
Clutch diameter: 235 mm
Part type: Gearbox / clutch assembly
Condition: New / Used — specify

The Aventador S uses Lamborghini’s 7-speed ISR transmission with a dry double-plate clutch measuring 235 mm.

OEM Gearbox

For the 2020 Aventador S, the parts catalogue identifies 0CE300041C as the complete 7-speed automatic gearbox. Earlier Aventador S production uses different revisions, so the exact gearbox number must be matched to the VIN.

The gearbox incorporates a hydraulic control system, and the catalogue separately identifies the clutch and hydraulic-control assemblies.

Clutch

The Aventador S clutch is a dry twin/double-plate unit designed for the ISR transmission. The ISR system allows extremely rapid sequential gear changes through independently controlled shift rods.

Important: Do not assume a standard Aventador LP700-4 clutch or gearbox is interchangeable with the LP740-4 S. Exact revisions vary by model year, market and VIN.

For used units, verify:

• Gearbox OEM number
• Transmission serial number
• Clutch condition and remaining wear
• Hydraulic actuator condition
• Vehicle VIN
• Model year
• Calibration/software compatibility

ISR transmission work requires specialist procedures; the hydraulic system must be properly depressurized and the clutch subsequently calibrated/adapted with appropriate Lamborghini diagnostic equipment.

Suggested listing title:
Genuine OEM Lamborghini Aventador S LP740-4 7-Speed ISR Gearbox & Dry Double-Plate Clutch 6.5 V12
