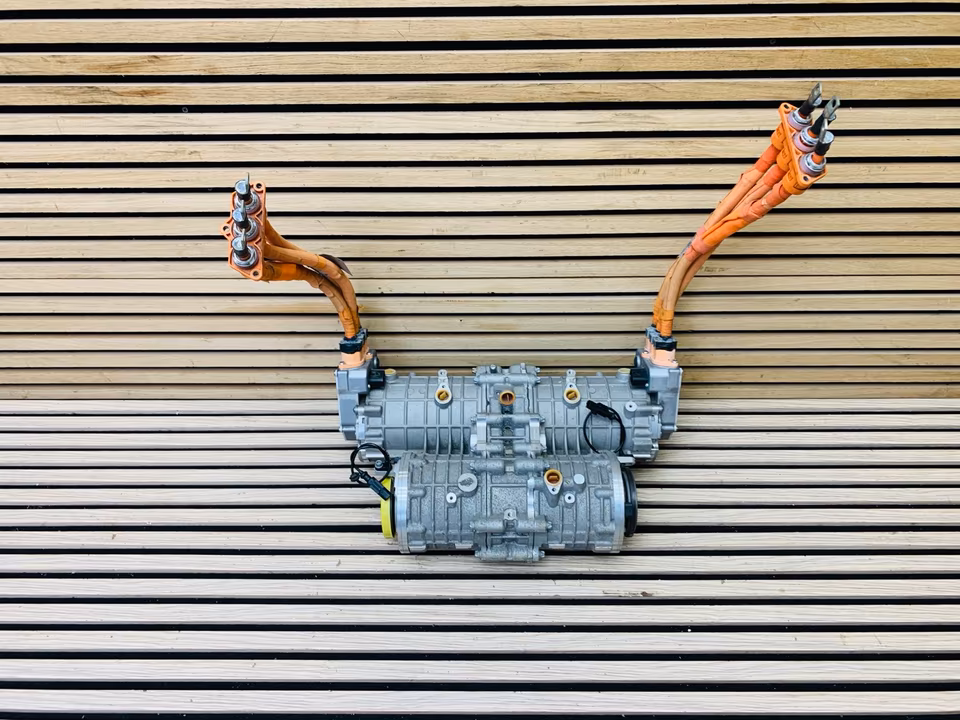

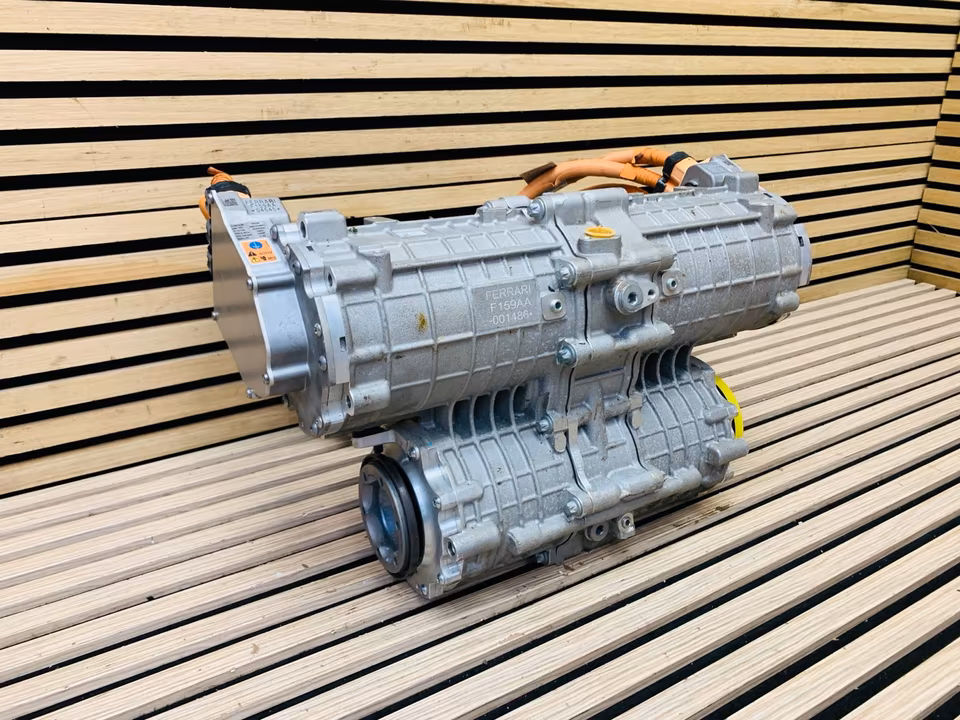

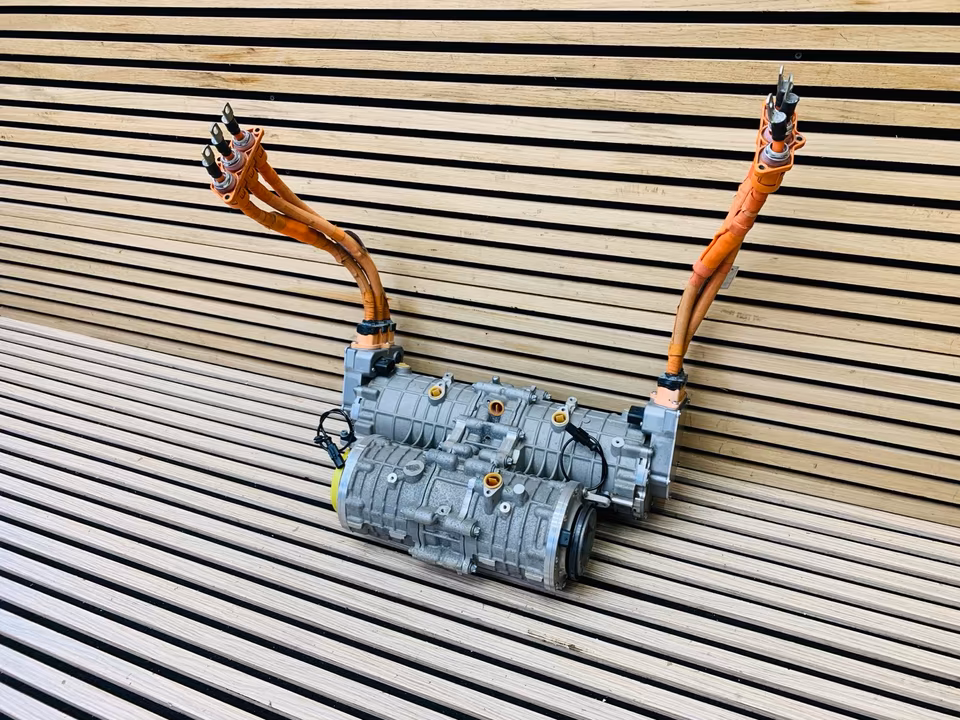

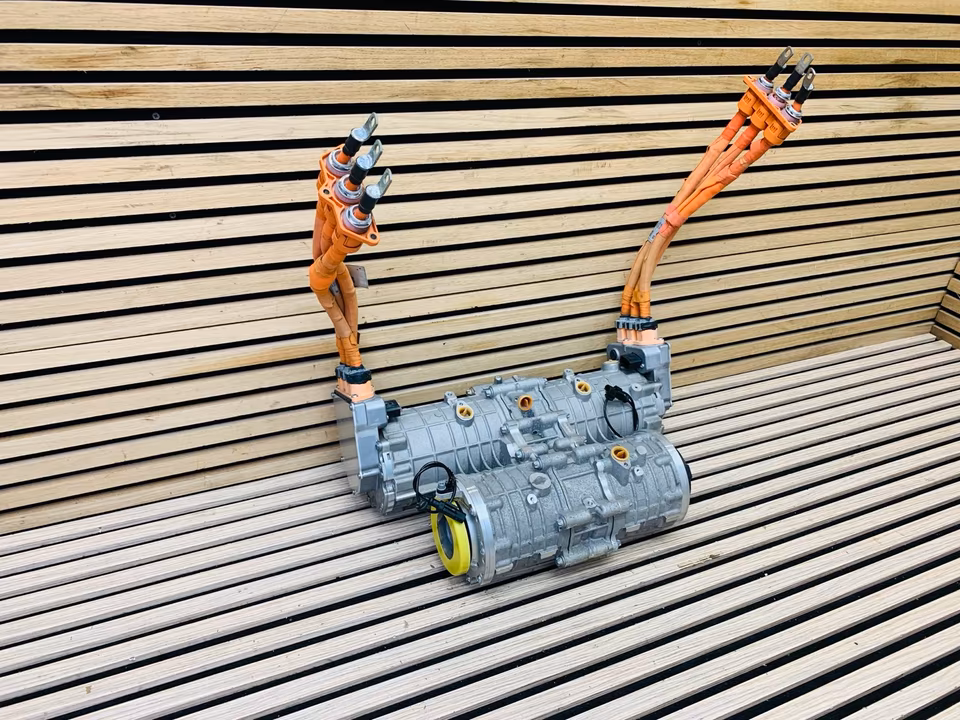

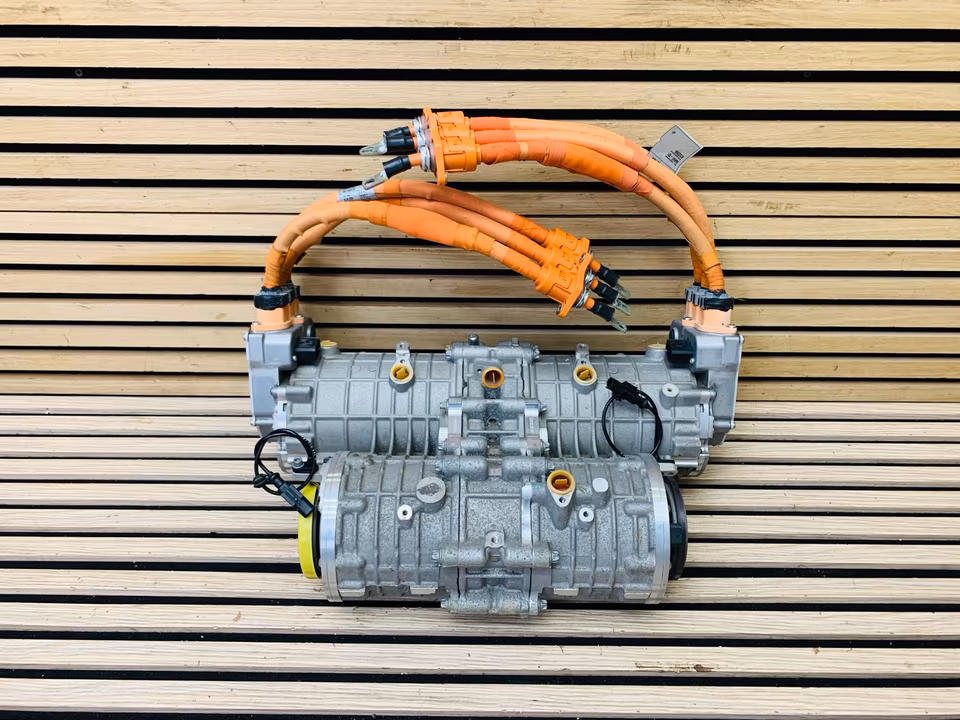

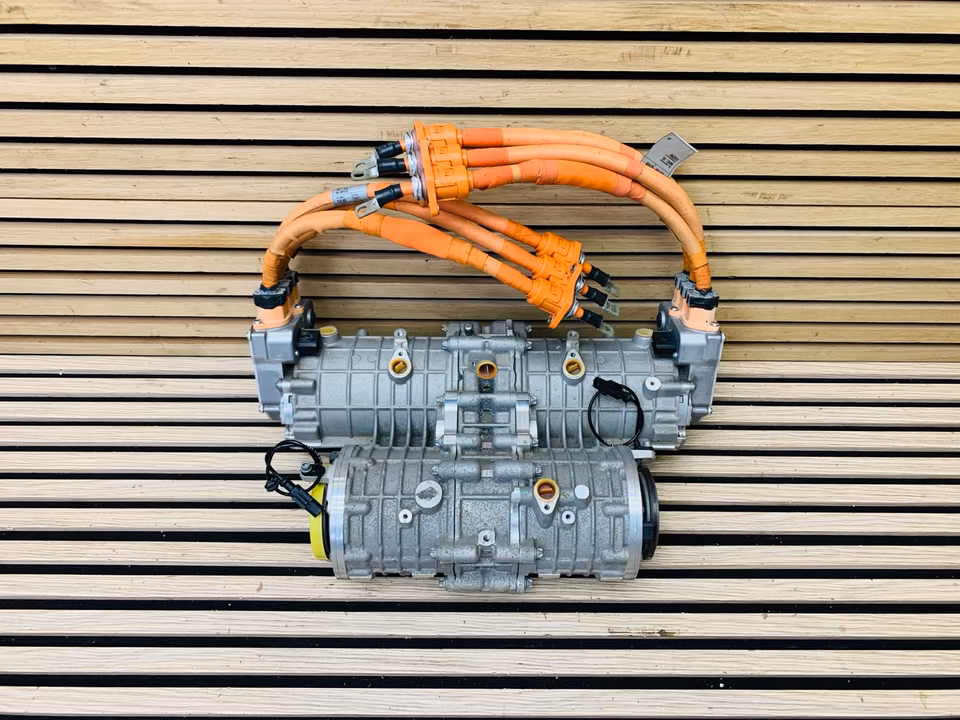

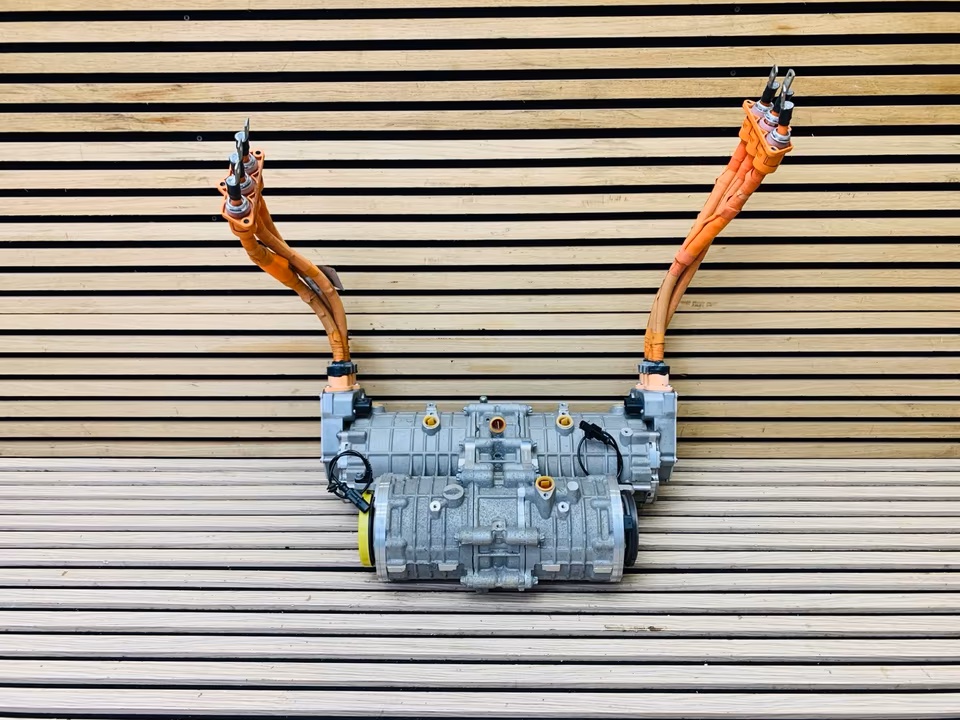

Genuine OEM-specification Ferrari SF90 electric motor assembly, designed for the sophisticated plug-in hybrid powertrain of the Ferrari SF90 Stradale and SF90 Spider. The SF90 uses three electric motors: two independent motors on the front axle and a third electric motor positioned between the V8 engine and 8-speed dual-clutch transmission.

Vehicle: Ferrari SF90 Stradale / SF90 Spider
Application: Hybrid Electric Powertrain
Part Type: Electric Machine / Electric Motor
OEM Part Number: 880420
Alternative / Regional Part: 744278
Condition: [New / Used – specify]
Manufacturer: Ferrari OEM

Key Features:

• Genuine Ferrari OEM electric machine
• Designed for SF90 hybrid applications
• High-performance electric motor technology
• Factory-engineered for Ferrari’s PHEV powertrain
• Suitable for replacement, repair, or specialist refurbishment
• Designed for professional Ferrari hybrid-system applications

Ferrari parts catalogues list 880420 – Complete Electric Machine for both the SF90 Stradale and SF90 Spider, while 744278 is listed as an applicable variant for certain market configurations.

SF90 Hybrid System:

• 3 × electric motors
• 2 × independent front electric motors
• 1 × rear electric motor between the V8 and transmission
• High-voltage lithium-ion battery
• Electric motor control/inverter system
• 8-speed dual-clutch transmission

The SF90’s three electric motors contribute to a combined 220 CV alongside the 780 CV twin-turbo V8, for a total system output of 1,000 CV in the original SF90 Stradale specification.

Important: The term “SF90 electric motor” can refer to different motor locations. The front RAC-e motors and rear MGU-K motor are separate components. Therefore, the exact motor position and OEM part number must be confirmed before purchase.

Package Contents:

• 1 × Ferrari SF90 electric machine/motor, corresponding to the stated OEM specification.

High-voltage components are safety-critical. Professional Ferrari hybrid-system installation and diagnostic calibration are strongly recommended.
